Features |
Specifications |
Dimensions |
|
|
Model |

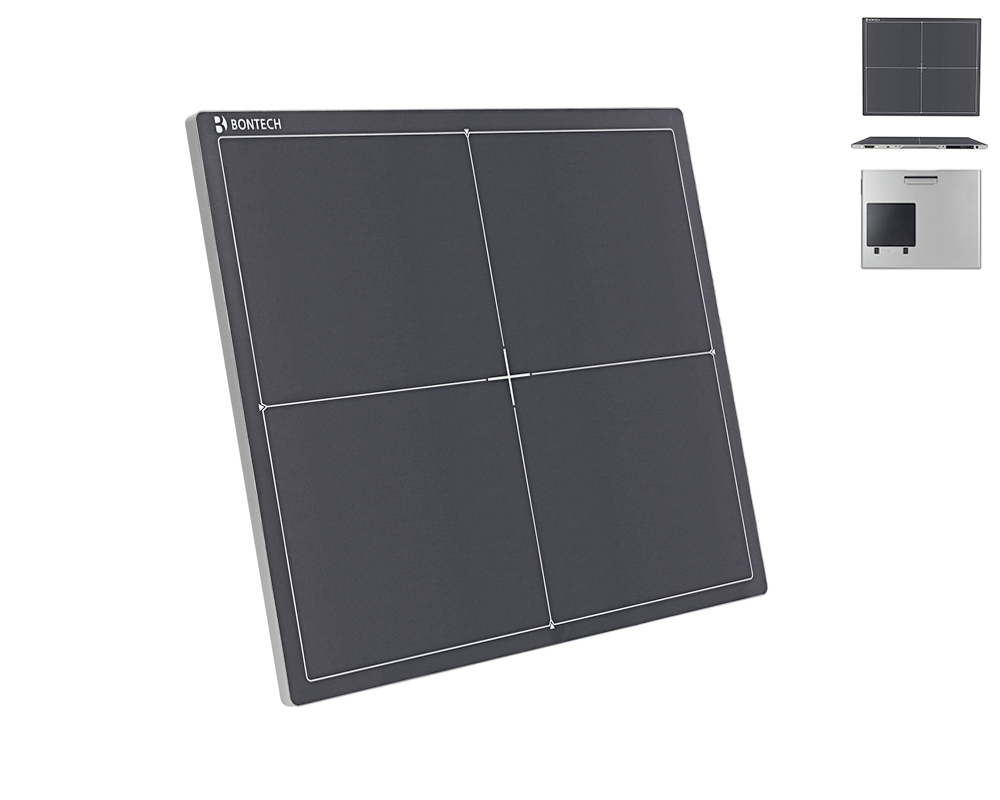

BT-DA22W (CsI) BT-DB22W (GOS) |
Purpose |
General Radiography |
Image Matrix Size |
2,500 x 3,052 |
Pixel Pitch |
140µm |
Effective Imaging Area |
350 mm x 427.28 mm
|
Grayscale |
16 bit, 65,536 grayscale |
Scintillator |
CsI / GOS |
Image Acquire & Transfer Time |
Preview : less than 3 sec |
Spatial Resolution |
3.5 lp/mm |
Battery |
7.5V, 5,500mAh |
Battery Performance |
More than 4 hours |
Durability |
IP67 |
Interface |
Wireless : IEEE 802.11ac |
Dimensions |
384 x 460 x 15 mm |
Weight |
2.92 kg (Including battery) |
Component |
Battery charger
| |
